Photo Traic Relay
光可控硅继电器
完美替代 Replacement for AQH2213, AQH3213, AQH2223, AQH3223, AQH2213A, AQH3213A, AQH2223A, AQH3223A.
BC系列光可控硅继电器，作为我司的一款可控硅输出固态继电器，拥有出色的负载能力。它具备高至2A的最大负载电流和600V的最大负载电压，最大冲击电流可以耐受20A。使其能够轻松应对各种交流负载控制需求。此外，其随机切换类型和8引脚贴片封装设计，进一步提升了使用的便捷性和灵活性。
The BC series thyristor relay, as our company's thyristor output solid-state relay, has excellent load capacity. It has a maximum load current of up to 2A and a maximum load voltage of 600V, and can withstand a maximum surge current of 20A. Enable it to easily handle various communication load control requirements. In addition, its random switching type and 8-pin surface mount packaging design further enhance the convenience and flexibility of use.
型号与参数 Specifications
| 型号 Model | 封装形式 Package Type | 输出形式 Contact Form | 输出电压 Load Voltage | 输出电流 Load Current | 导通电阻 On-resistance | 资料下载 Download |
|---|---|---|---|---|---|---|

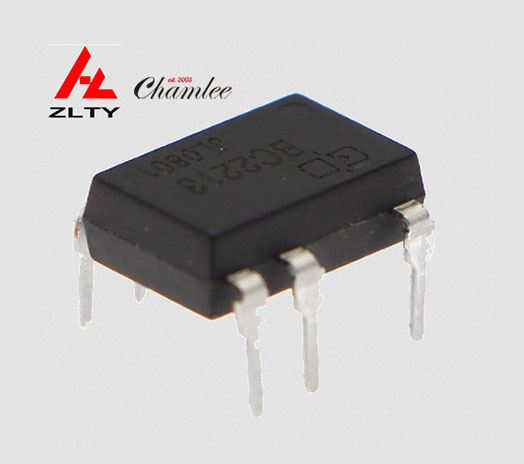

| BC2213 | DIP7 | 1a (过零 cross zero) | 600V | 0.9A | – | |

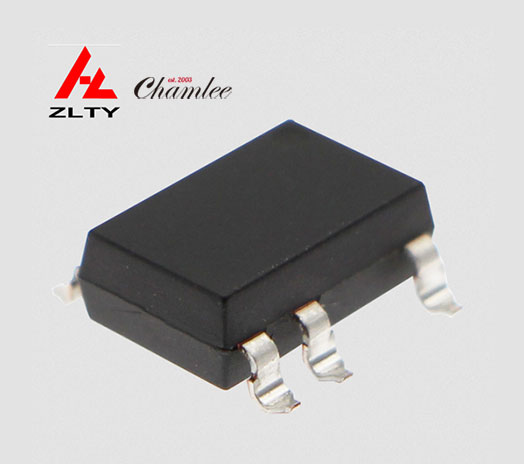

| BC2213A | SMD7 | 1a (过零 cross zero) | 600V | 0.9A | – | |
| BC3213 | DIP7 | 1a (过零 cross zero) | 600V | 1.2A | – | |
| BC3213A | SMD7 | 1a (过零 cross zero) | 600V | 1.2A | – | |
| BC5213 | DIP7 | 1a (过零 cross zero) | 600V | 2A | – | |
| BC5213A | SMD7 | 1a (过零 cross zero) | 600V | 2A | – | |
| BC2223 | DIP7 | 1a (随机 random) | 600V | 0.9A | – | |
| BC2223A | SMD7 | 1a (随机 random) | 600V | 0.9A | – | |
| BC3223 | DIP7 | 1a (随机 random) | 600V | 1.2A | – | |
| BC3223A | SMD7 | 1a (随机 random) | 600V | 1.2A | – | |
| BC5223 | DIP7 | 1a (随机 random) | 600V | 2A | – | |
| BC5223A | SMD7 | 1a (随机 random) | 600V | 2A | – |
